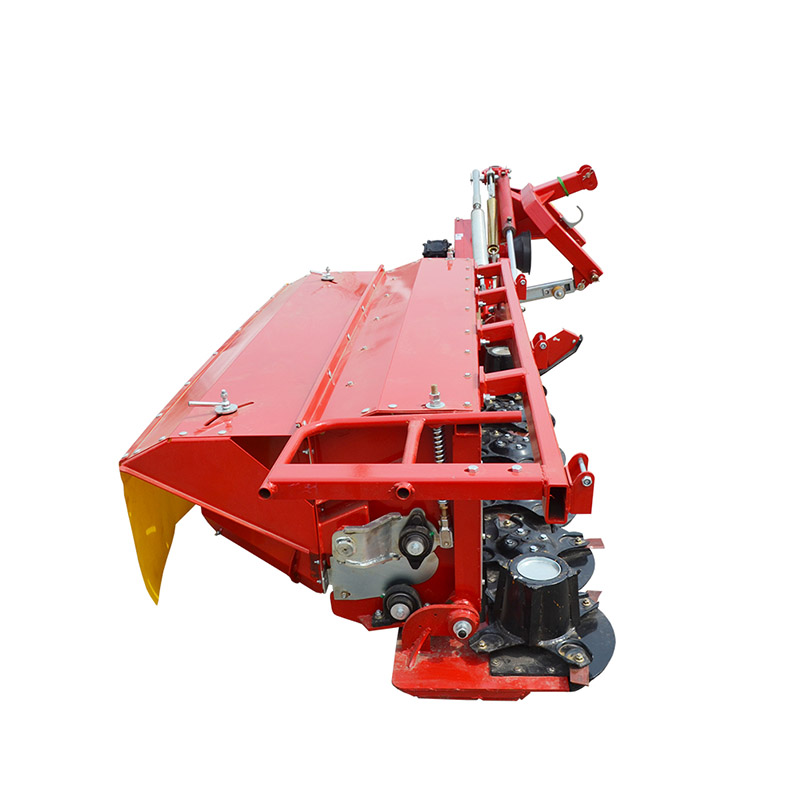

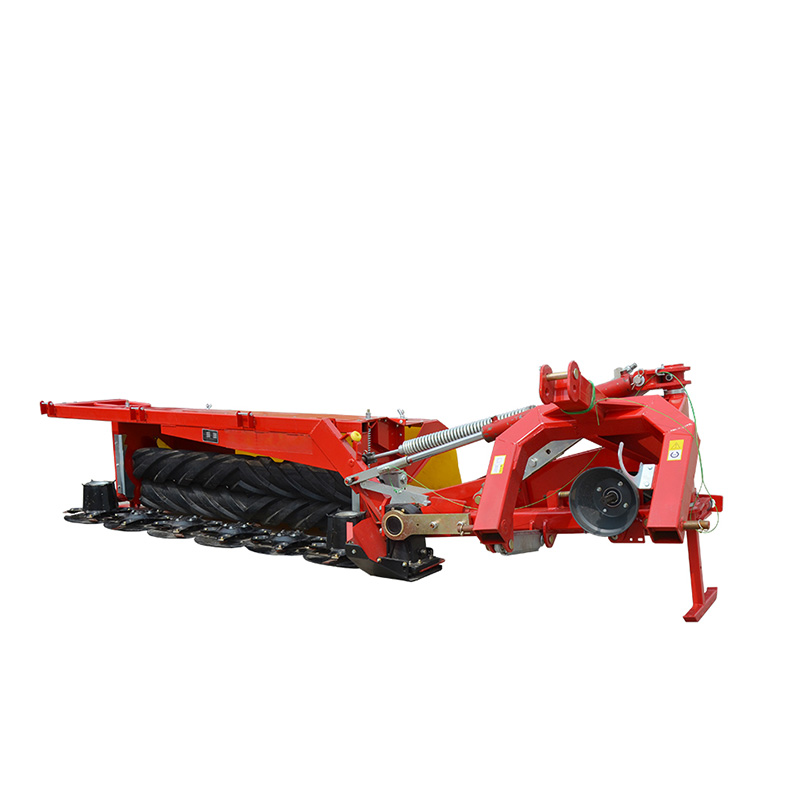

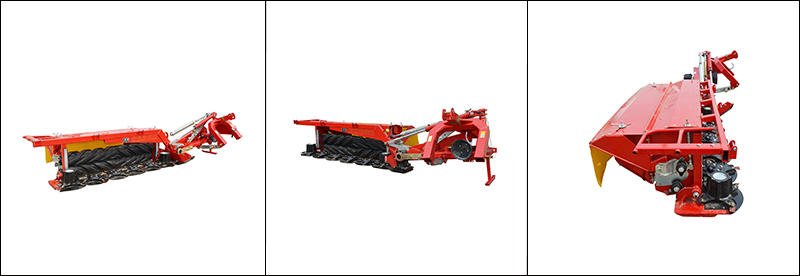

Disc Mower with Conditioner
Disc Mower with Conditioner is a high-efficiency agricultural machine integrating cutting & flattening functions, stable performance, easy operation and long using time. As a professional manufacturer & supplier in China, we specializing in mower production many years, provide reliable and efficient Disc Mower with Conditioner for global customers. Welcome to wholesale or customized mower from our factory at any time.
Send Inquiry
Product Description
What is a disc mower with conditioner?
The Disc Mower with Conditioner is designed to meet the needs of forage harvest, which can cutting the freshly grass stems, accelerate the evaporation of internal moisture, shorten the drying time, and make the stems, leaves and flowers dry uniformly, reducing nutrient loss and improving the quality of hay.
This machine adopts an integrated structural design, combining the cutting system and flattening system organically, which not only saves installation space but also improves the coordination between components, avoiding the trouble of separate operation of multiple machines and greatly improving the harvesting efficiency.
How many models available?
| Model | 9GXY-2.1 | 9GXY-2.4 |
| Number of disc | 5 | 6 |
| Number of knives | 2 | 2/3 |
| Working Width(M) | 2.1 | 2.4 |
| Dimension(MM) | 4200*1600*800 | 4600*1600*800 |
| Weight(KG) | 780 | 820 |
| Matched Power(HP) | 80-120 | 100-140 |
| Working Rate(Area/H) | 10 | 15 |
| Hydraulic | Standard | |
| Iron Cover | Standard | |
| Crusher Rollers | Standard | |
What’s the features of this machine?
Compared with common disc mower, this Disc Mower with Conditioner is more suitable forage harvesting in less time.
1.Widely used for harvesting alfalfa, clover, and other forage grasses, providing the cleanest and most accurate cuts among all forage cutters;
2.The rubber conditioner roller flattens the stems of freshly cut forage grass to accelerate drying, reduce nutrient loss, and achieve excellent drying results;
3.When the roller rotates and contacts the lawn, only the cutter blades on the disc mower can touch the forage grass.
4.This specially designed disc mower will not damage the lawn;
5.The disc rotates at 2900RPM, creating airflow that lifts tilted grass, easily harvesting fallen forage;
6.The working width is suitable for small to medium-sized plots, enabling rapid harvesting. ;
7.The herringbone rubber rollers concentrate the flattening action from the outside in, with both lateral and longitudinal forces resulting in superior flattening. This effectively crushes forage stems, protecting leaves, making it ideal for crops with fragile leaves, such as clover, alfalfa, and all legumes;
8.The flattened forage is evenly and smoothly thrown backwards and falls back to the ground, forming fluffy and neat strips.
Each Disc Mower with Conditioner has undergone strict quality inspection before leaving the factory to ensure that the product meets international standards.
Whether you are a large-scale farm or an individual farmer, our mower can bring you efficient and convenient harvesting experience, and we sincerely welcome global customers to consult and purchase.
