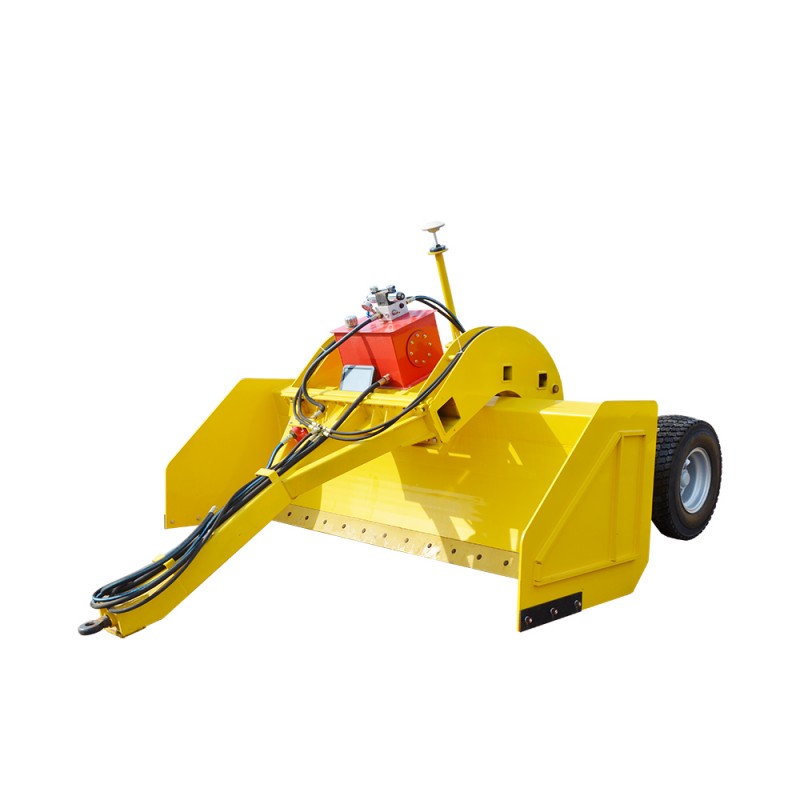

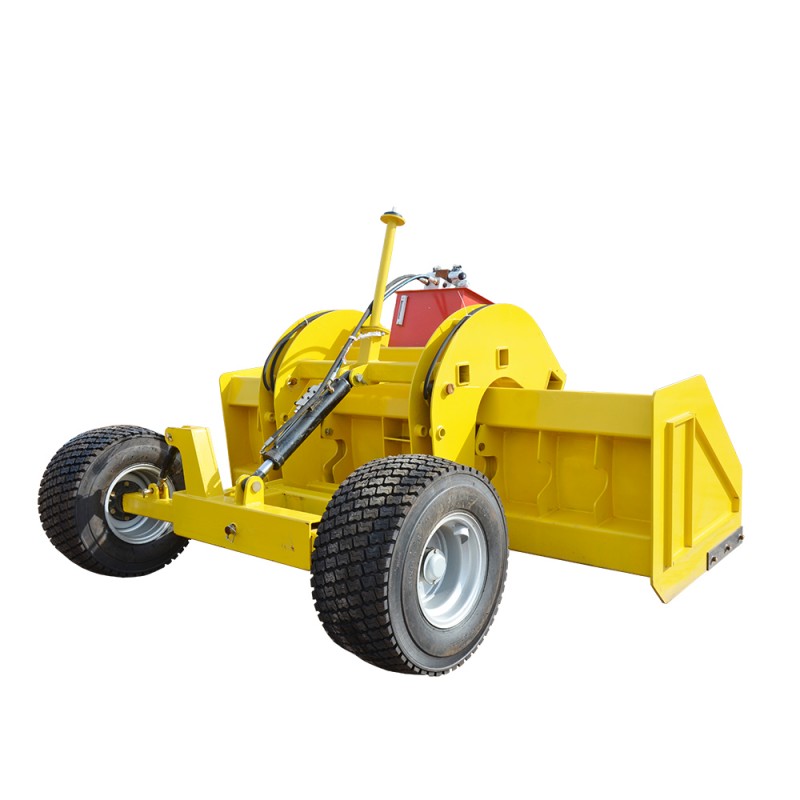

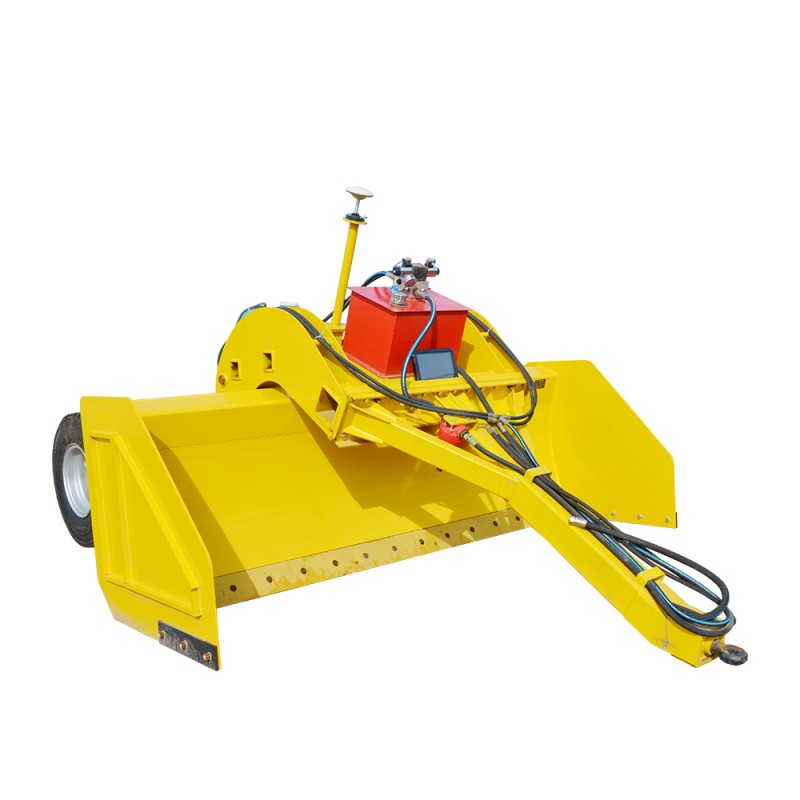

GPS Land Leveler
Harvester Machinery is a leading China GPS Land Leveler manufacturer, supplier and exporter. Adhering to the pursuit of perfect quality of products, so that our GPS Land Leveler have been satisfied by many customers. Extreme design, quality raw materials, high performance and competitive price are what every customer wants, and that's also what we can offer you. Of course, also essential is our perfect after-sales service. If you are interested in our GPS Land Leveler, you can consult us now, we will reply to you in time!
Send Inquiry
Product Description
Harvester Machinery warmly welcome you to wholesale GPS Land Leveler from our factory. Our products are CE certified and currently have a large amount of factory inventory.

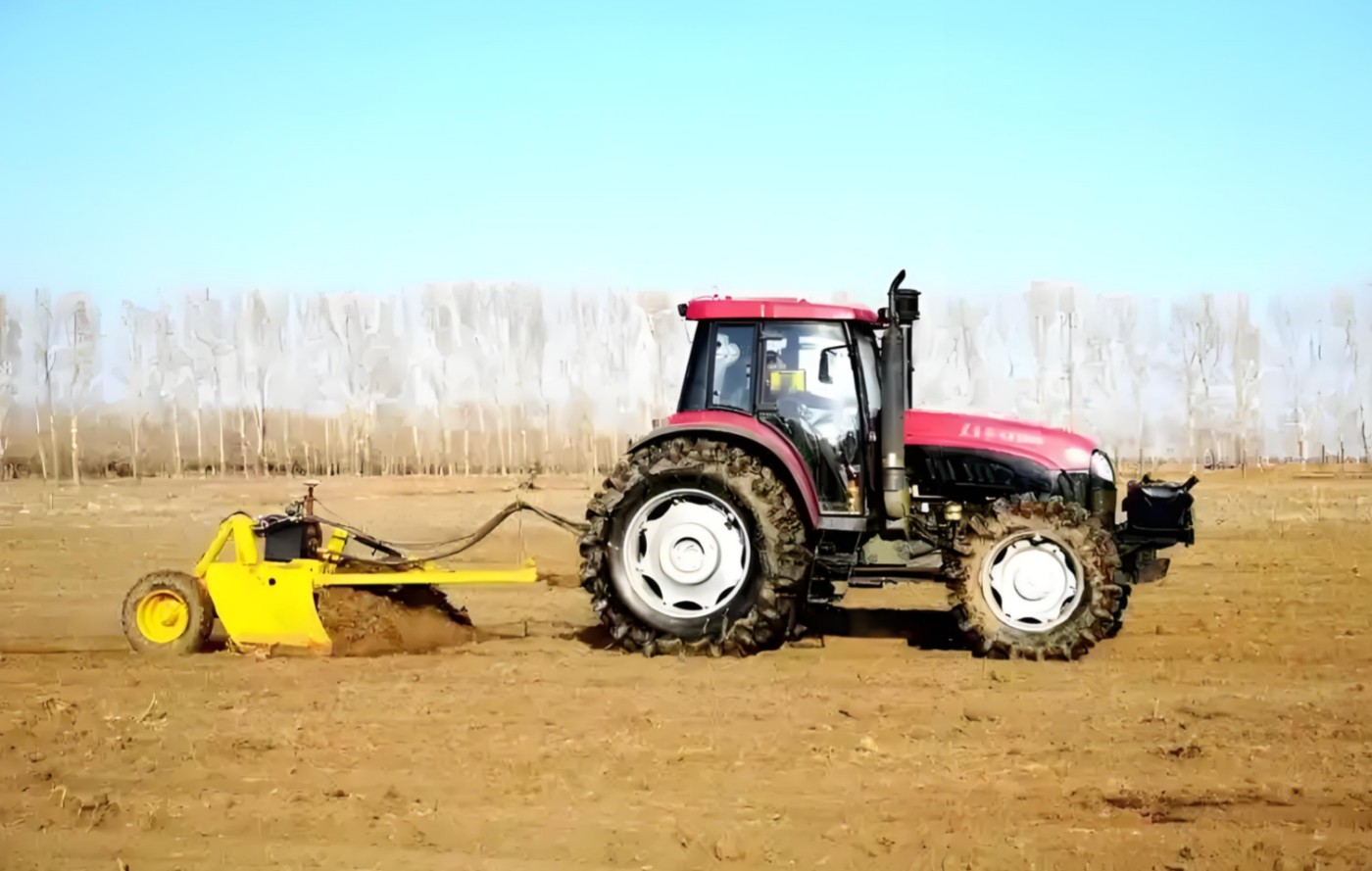

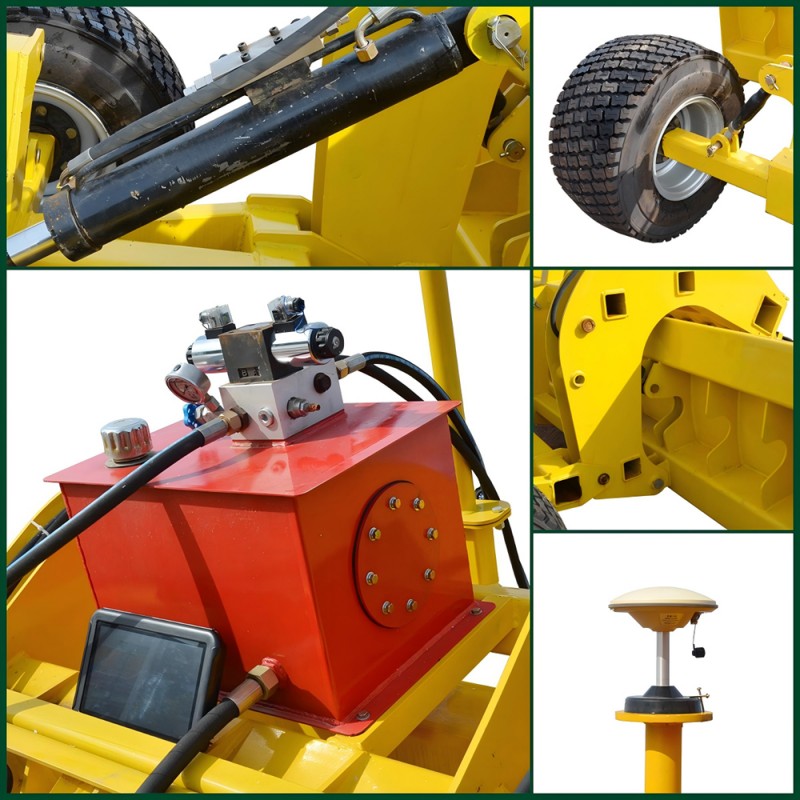

In cultivation, soil layer structure and surface condition are very important. The GPS Land Leveler designed and produced by our company adopts differential positioning technology to achieve high-precision leveling operations, and also supports slope leveling to improve soil production conditions and comprehensively enhance agricultural productivity. Ground base stations provide positioning reference information, which is transmitted to the controller through wireless radio stations to calculate higher precision shovel position information. The control system calculates the reference datum plane through point sampling, compares the position of the shovel body with the reference datum plane, and obtains the expansion and contraction amount of the limit cylinder through a certain algorithm. The GPS Land Leveler uses wireless transmission of signals, and the signals are not affected by space and environment, with a transmission distance of over 5 km.
In cultivation, soil layer structure and surface condition are very important. The GPS Land Leveler designed and produced by our company adopts differential positioning technology to achieve high-precision leveling operations, and also supports slope leveling to improve soil production conditions and comprehensively enhance agricultural productivity. Ground base stations provide positioning reference information, which is transmitted to the controller through wireless radio stations to calculate higher precision shovel position information. The control system calculates the reference datum plane through point sampling, compares the position of the shovel body with the reference datum plane, and obtains the expansion and contraction amount of the limit cylinder through a certain algorithm. The GPS Land Leveler uses wireless transmission of signals, and the signals are not affected by space and environment, with a transmission distance of over 5 km.
How many models of GPS Land Leveler available?
For this GPS Land Leveler, there are a few models available for your choice!
You can choice it according to your requirements.
You can choice it according to your requirements.
TECHNICAL PARAMETERS
| Model | Structure |
Dimension (mm) |
Working Width(mm) | Matched Power(KW) | Control Mode | Leveling Shovel Type | Tire Size | Weight(kg) | Working Area(Area/H) |
| 12PW-1.5 | Trail Type | 2650*1600*1320 | 1500-2200 | 50.4-80.9 | Satelite Control | Straight Shovel | 23*8.50/12 | 1150 | 3.5 |
| 12PW-2.5 | Trail Type | 4000*2614*1350 | 2500-3200 | 102.9-154.4 | Satelite Control | Straight Shovel | 10.0/75-15.3 | 1440 | 5 |
| 12PW-2.8 | Trail Type | 4000*2930*1350 | 2800-3500 | 102.9-154.4 | Satellite Control | Straight Shovel | 10.0/75-15.3 | 1480 | 6 |
| 12PW-4.0 | Trail Type | 4800*2650*1700 | 2500-4000 | 154.4-180.5 | Satelite Control | Straight Shovel | 10.0/75-15.3 | 2600 | 8 |
| 12PW-2.5 | Trail Type | 4000*2610*1350 | 2500 | 80.4-102.9 | Satellite Control | Straight Shovel | 10.0/75-15.3 | 1150 | 4 |
| 12PW-3.0 | Trail Type | 4300*3120*1650 | 3000 | 102.9-154.4 | Satelite Control | Straight Shovel | 31*15.5-15 | 1980 | 5 |
What's the features or advantage of this GPS Land Leveler?
1.Real-time map display: operation track, high and low terrain map, intuitive and clear, leveling efficiency can be increased by 30%;
2.Compatible with a variety of flat shovels: adaptable to telescopic shovels, soil loosening shovels, paddy field scrapers, scrapers and imported flat shovels;
3.24-hour all-weather operation: day, night, strong wind, dust, haze and other bad weather can work;
4.Full coverage of network signals: No need to set up base stations, unlimited working distance, saving labor costs by 15%;
5.Self-adjusting datum, accurate and efficient: the system automatically recognizes the height of the terrain and automatically adjusts the land datum, which can improve the operation efficiency by 20%;
2.Compatible with a variety of flat shovels: adaptable to telescopic shovels, soil loosening shovels, paddy field scrapers, scrapers and imported flat shovels;
3.24-hour all-weather operation: day, night, strong wind, dust, haze and other bad weather can work;
4.Full coverage of network signals: No need to set up base stations, unlimited working distance, saving labor costs by 15%;
5.Self-adjusting datum, accurate and efficient: the system automatically recognizes the height of the terrain and automatically adjusts the land datum, which can improve the operation efficiency by 20%;
