Satellite Land Grader
Harvester Machinery, as one of the professional China Satellite Land Grader manufacturers and China factory, we are strong strength and complete management. Also, we have own exporting license. We mainly deal in making a series of Satellite Land Grader and so on. We stick to the principal of quality orientation and customer priority, we sincerely welcome your letters, calls and investigations for business cooperation. We assure you of our high quality services at all time.
Send Inquiry
Product Description
The following is an introduction to product, I hope to help you better understand it. And Harvester Machinery warmly welcome you to wholesale product from our factory. Our products are CE certified and currently have a large amount of factory inventory. We will provide you with good service and factory discounted prices.
Satellite Land Grader is an agricultural machine that uses satellite positioning technology to achieve automatic control and can efficiently level the land.
With the application of GNSS high-precision positioning systems such as GPS and Beidou, our product have begun to play a role in agricultural production with their all-weather, high-precision, and long-distance characteristics.

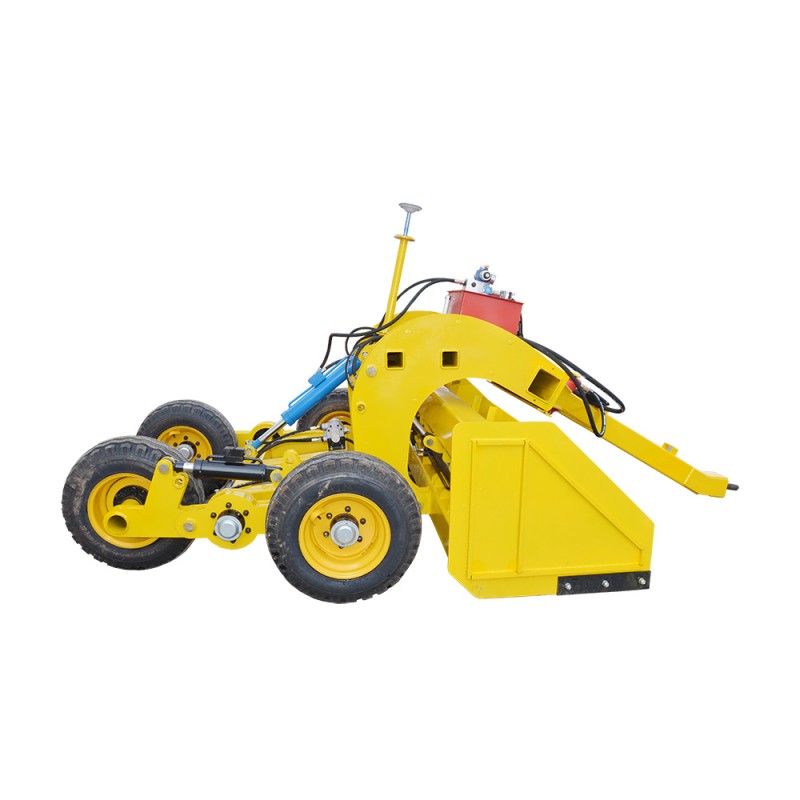

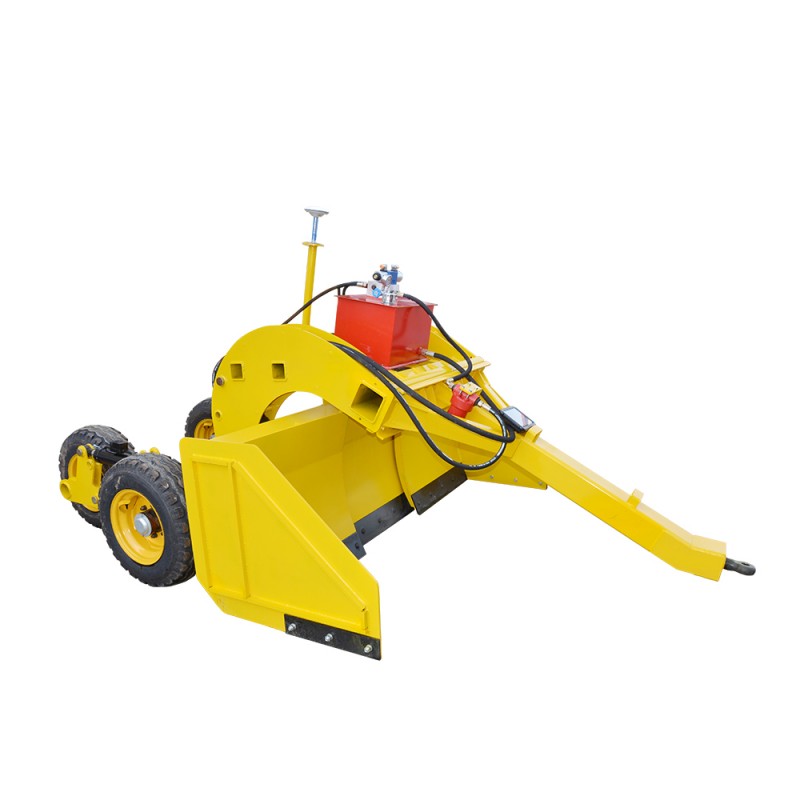

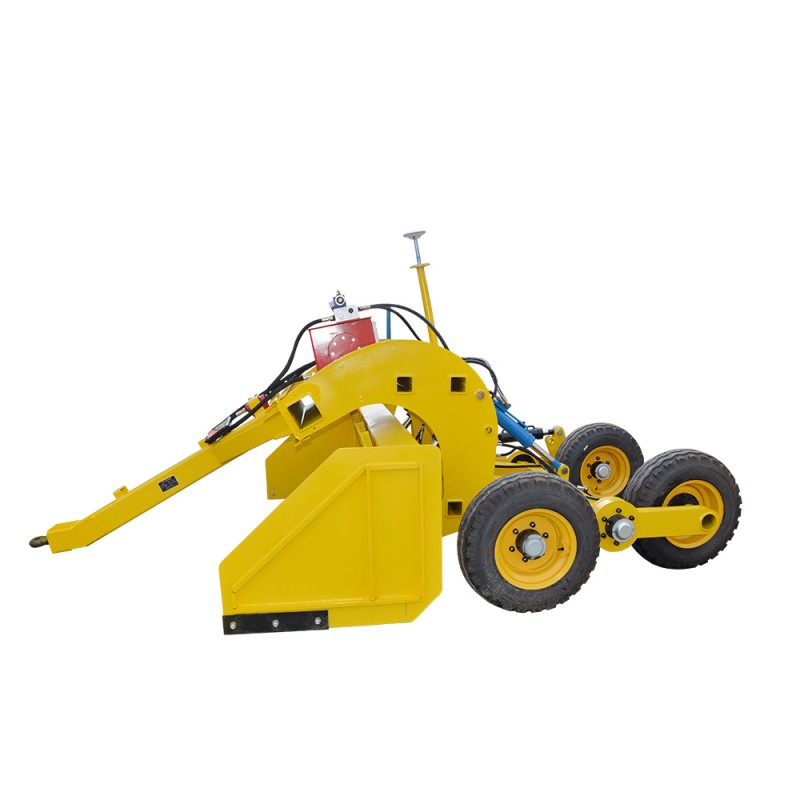

The Beidou Satellite Land Grader produced by our company is suitable for matching operation with wheeled or crawler tractors, and adopts traction and hooking. It has the function of leveling the field, and adopts hydraulic system and satellite leveling automatic high leveling to make the leveled ground flat and have good water retention effect.
Satellite Land Grader is an agricultural machine that uses satellite positioning technology to achieve automatic control and can efficiently level the land.
With the application of GNSS high-precision positioning systems such as GPS and Beidou, our product have begun to play a role in agricultural production with their all-weather, high-precision, and long-distance characteristics.
The Beidou Satellite Land Grader produced by our company is suitable for matching operation with wheeled or crawler tractors, and adopts traction and hooking. It has the function of leveling the field, and adopts hydraulic system and satellite leveling automatic high leveling to make the leveled ground flat and have good water retention effect.
What's the components of this product?
1.Satellite Base Station: Mounted on a tripod, this component allows the Beidou, or GPS signal to located the actual height about the machine in the field.
2.Satellite Receiver: This Omnidirectional receiver detects the position of the height position signals to the control box. It is mounted on a manual/hydraulic mast attached to the drag bucket.
3.Control Panel: This box accepts and processes signals from the satellite receiver, displaying the position of the drag bucket relative to the finished grade. The control box has three switches, On/Off, Auto/Manual, and Manual Raise/Lower, and provides electrical output for driving the hydraulic valve when set to automatic.
4.Hydraulic Control System: The tractor’s hydraulic system supplies oil to raise and lower the leveling bucket. A pressure relief valve returns excess oil to the tractor reservoir. The solenoid control valve controls the flow of oil to the hydraulic ram that raises and lowers the bucket.
5.Drag Bucket: The leveling bucket can be either a 3-point linkage mounted with the tractor. It is used to scoop soil from high areas and deposit it into low areas. The cutting blade is set slightly above ground level (1-2 cm).
All of these components of Satellite Land Grader work together to create an efficient and accurate leveling process. The satellite transmitter and receiver establish a reference plane for the drag bucket to follow, while the hydraulic control system allows for precise raising and lowering of the bucket as it moves across the field. The control panel provides the operator with a clear picture of the bucket’s position relative to the finished grade and enables adjustments to be made as necessary. It is a comprehensive system designed to help farmers level their land with ease and precision.
2.Satellite Receiver: This Omnidirectional receiver detects the position of the height position signals to the control box. It is mounted on a manual/hydraulic mast attached to the drag bucket.
3.Control Panel: This box accepts and processes signals from the satellite receiver, displaying the position of the drag bucket relative to the finished grade. The control box has three switches, On/Off, Auto/Manual, and Manual Raise/Lower, and provides electrical output for driving the hydraulic valve when set to automatic.
4.Hydraulic Control System: The tractor’s hydraulic system supplies oil to raise and lower the leveling bucket. A pressure relief valve returns excess oil to the tractor reservoir. The solenoid control valve controls the flow of oil to the hydraulic ram that raises and lowers the bucket.
5.Drag Bucket: The leveling bucket can be either a 3-point linkage mounted with the tractor. It is used to scoop soil from high areas and deposit it into low areas. The cutting blade is set slightly above ground level (1-2 cm).
All of these components of Satellite Land Grader work together to create an efficient and accurate leveling process. The satellite transmitter and receiver establish a reference plane for the drag bucket to follow, while the hydraulic control system allows for precise raising and lowering of the bucket as it moves across the field. The control panel provides the operator with a clear picture of the bucket’s position relative to the finished grade and enables adjustments to be made as necessary. It is a comprehensive system designed to help farmers level their land with ease and precision.
If you want to get more information about this Satellite Land Grader, please feel free to contact:
Catherine
Email: catherine@harvestermachinery.com
WhatsApp/Tel: 0086-15132400201
Catherine
Email: catherine@harvestermachinery.com
WhatsApp/Tel: 0086-15132400201
Hot Tags: Satellite Land Grader, China, Manufacturers, Suppliers, Factory, Wholesale
