Hay Disc Mower
Harvester Machinery, as one of the professional China Hay Disc Mower manufacturers and China Hay Disc Mower factory, we are strong strength and complete management. We mainly deal in making a series of Hay Disc Mower and so on. We stick to the principal of quality orientation and customer priority, we sincerely welcome your letters, calls and investigations for business cooperation. We assure you of our high quality services at all time.
Send Inquiry
Product Description
Welcome to wholesale or customized Hay Disc Mower from our factory at any time. We will provide you with factory discount prices for our products. Harvester Machinery is Hay Disc Mower manufacturers and suppliers in China.
A Hay Disc Mower is an agricultural machinery used for efficient mowing and harvesting, widely used for harvesting various livestock grasses such as alfalfa, ryegrass, and oat grass. Its working principle is to use a series of rotating discs equipped with sharp blades to rotate at high speed. As the Hay Disc Mower moves forward, these discs will cut open the grass or crops, achieving a clean and even mowing effect.
A Hay Disc Mower is an agricultural machinery used for efficient mowing and harvesting, widely used for harvesting various livestock grasses such as alfalfa, ryegrass, and oat grass. Its working principle is to use a series of rotating discs equipped with sharp blades to rotate at high speed. As the Hay Disc Mower moves forward, these discs will cut open the grass or crops, achieving a clean and even mowing effect.

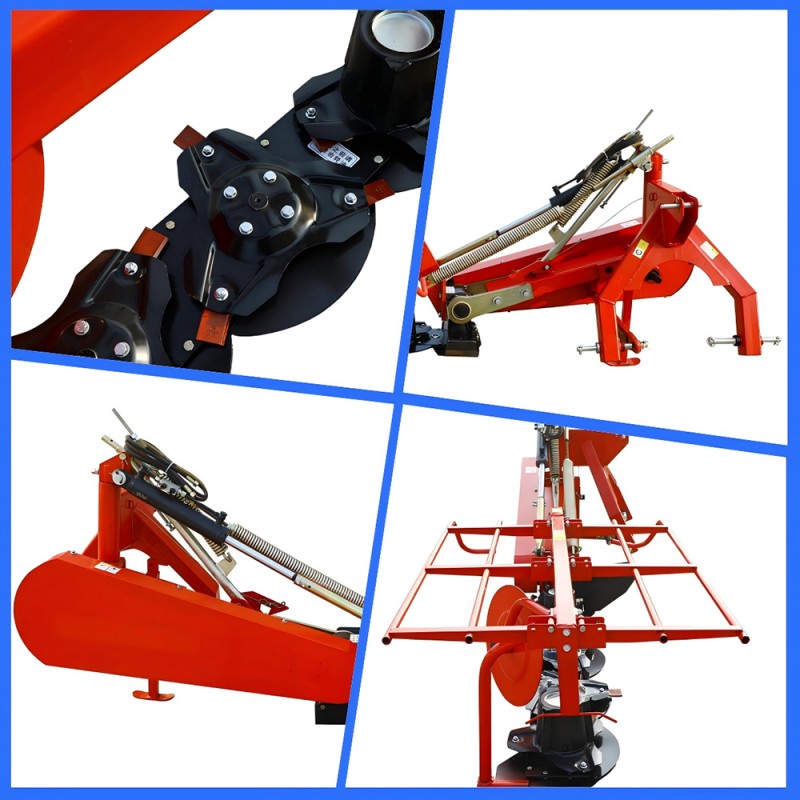

What’s the structure of this Hay Disc Mower?
1. Cutting mechanism:
Cutting mechanism, mainly composed of multiple discs. Hay Disc Mower is usually equipped with multiple high-speed rotating discs, each with 2-3 blades. The blades are hinged on the discs, and when the discs rotate at high speed, the blades maintain the cutting state under the action of centrifugal force. When encountering large obstacles, the blades can be pushed back to avoid damage, and the blades can be used on the other side after one side of the blade is worn, which is convenient for replacement.
2. Drive system:
The power of the Hay Disc Mower comes from the drive system. The Hay Disc Mower produced by our company adopts a gearbox driven design, and the power is transmitted from the tractor's PTO to the cutting rod. The gearbox converts rotational energy into high-speed rotational motion of a disc.
3. Suspension and flotation:
The Hay Disc Mower adopts advanced suspension and floating systems to cope with different ground conditions. Mowing poles are usually suspended by springs or hydraulic cylinders, ensuring a tight fit with the contour of the ground. This design is commonly referred to as a floating mower pole, which ensures consistent mowing height and protects the Hay Disc Mower from damage when encountering obstacles. The suspension system also helps to evenly distribute the weight of the Hay Disc Mower, reduce soil compaction, and improve overall performance.
2. Drive system:
The power of the Hay Disc Mower comes from the drive system. The Hay Disc Mower produced by our company adopts a gearbox driven design, and the power is transmitted from the tractor's PTO to the cutting rod. The gearbox converts rotational energy into high-speed rotational motion of a disc.
3. Suspension and flotation:
The Hay Disc Mower adopts advanced suspension and floating systems to cope with different ground conditions. Mowing poles are usually suspended by springs or hydraulic cylinders, ensuring a tight fit with the contour of the ground. This design is commonly referred to as a floating mower pole, which ensures consistent mowing height and protects the Hay Disc Mower from damage when encountering obstacles. The suspension system also helps to evenly distribute the weight of the Hay Disc Mower, reduce soil compaction, and improve overall performance.
What’s the available model to choice about Hay Disc Mower?
As a professional Hay Disc Mower manufacturer and supplier in China, you can rest assured to buy Hay Disc Mower from our factory.
| Model | 9G-1.7 | 9G-2.1 | 9G-2.4 | 9G-2.8 |
| Number of disc | 4 | 5 | 6 | 7 |
| Number of knives/disc | 2/3 | 2 | 2/3 | 2 |
| Working Width(M) | 1.7 | 2.1 | 2.4 | 2.8 |
| Dimension(MM) | 3200*1250*1350 | 3700*1250*1350 | 4000*1250*1350 | 4400*1250*1350 |
| Weight(KG) | 475 | 480 | 510 | 566 |
| Matched Power(HP) | 40-90 | 50-120 | 70-130 | 90-140 |
| Working Rate(Area/H) | 20 | 25 | 30 | 35 |
| Hydraulic | Standard | |||
| Iron Cover | Standard | |||
If you want to get more information about this Hay Disc Mower, please feel free to contact: Catherine
Email: catherine@harvestermachinery.com
WhatsApp/Tel: 0086-15132400201
If you want to get more information about Mounted Grass Mower, you can contact us at catherine@harvestermachinery.com.
Email: catherine@harvestermachinery.com
WhatsApp/Tel: 0086-15132400201
If you want to get more information about Mounted Grass Mower, you can contact us at catherine@harvestermachinery.com.
